Description
What’s included:
- MAG544w3 set-top box, power supply, HDMI cable, IR remote control, AAA batteries (2 pcs), and user manual The MAG544W3 Set-Top Box includes the following features:
Dimensions:
Width/Depth/Height: 115 x 115 x 28 mm Weight: 170 g
Hardware:
Chipset: Amlogic S905Y4 Processor: Quad-core ARM Cortex-A53, 1,900 MHz Performance: 18,400 DMIPS RAM: 1 GB DDR4 RAM Flash Memory: 4 GB eMMC
Software: Operating System: Linux 4.9 Middleware: Pre-integrated Ministra TV platform with support for operator apps, image customization, or full replacement
Connectivity and Interfaces: HDMI 2.1 for high-definition output Ethernet 100 Mbps 1 × USB 3.0 and 1 × USB 2.0 Built-in Dual-Band 2T2R ac Wi-Fi for fast, reliable wireless connections
Media Sources and Playback: Supported Media Sources: PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio Codecs: MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ Audio Formats: AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video Modes: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) Video Codecs: MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps, H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video Containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB Image Formats: JPEG, PNG, BMP, RAW Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVTT, closed captions
Playlist Formats: M3U, M3U8, PLS, CUE

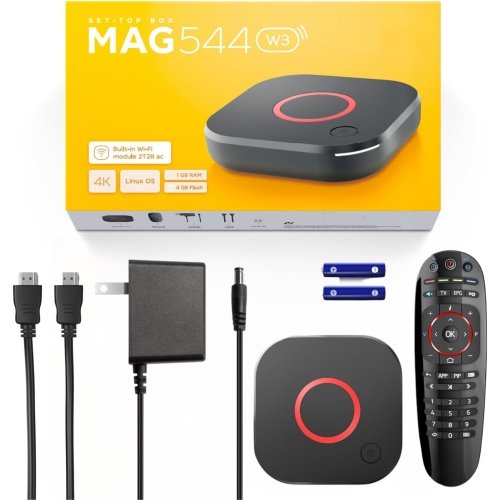

What’s Included in the Box:
1 x MAG 544w3 Set-Top Box
1 x User Manual
1 x HDMI Cable
1 x Power Adapter (12V 1A)
1 x Remote Control
2 x AAA Batteries
